Visual Inspection Reference for Medical Device Pouches

understanding visual inspection

What Defines
a Good Seal?

A proper medical pouch seal shows a clean, continuous, uniform appearance across the full seal area. It should be free of wrinkles or folds that could create channels for microbial ingress. The seal must display consistent color and opacity, clear evidence that temperature, pressure, and dwell time were evenly applied. See visual failure mode reference below.

Visual inspection reference

Spot Common Seal Defects

Review the various seal failure modes on this page to better understand visual seal value. Just remember to read the visual seal inspection limitations and disclaimer before using this guide.

Normal Seal

Learn more

Seal Channel

A thin unsealed pathway across the width of the seal that may reach from the sterile to the non-sterile side of the pouch seal. The channel may appear within the seal in a variety of forms often presenting as a straight or curved thin line.

Learn more

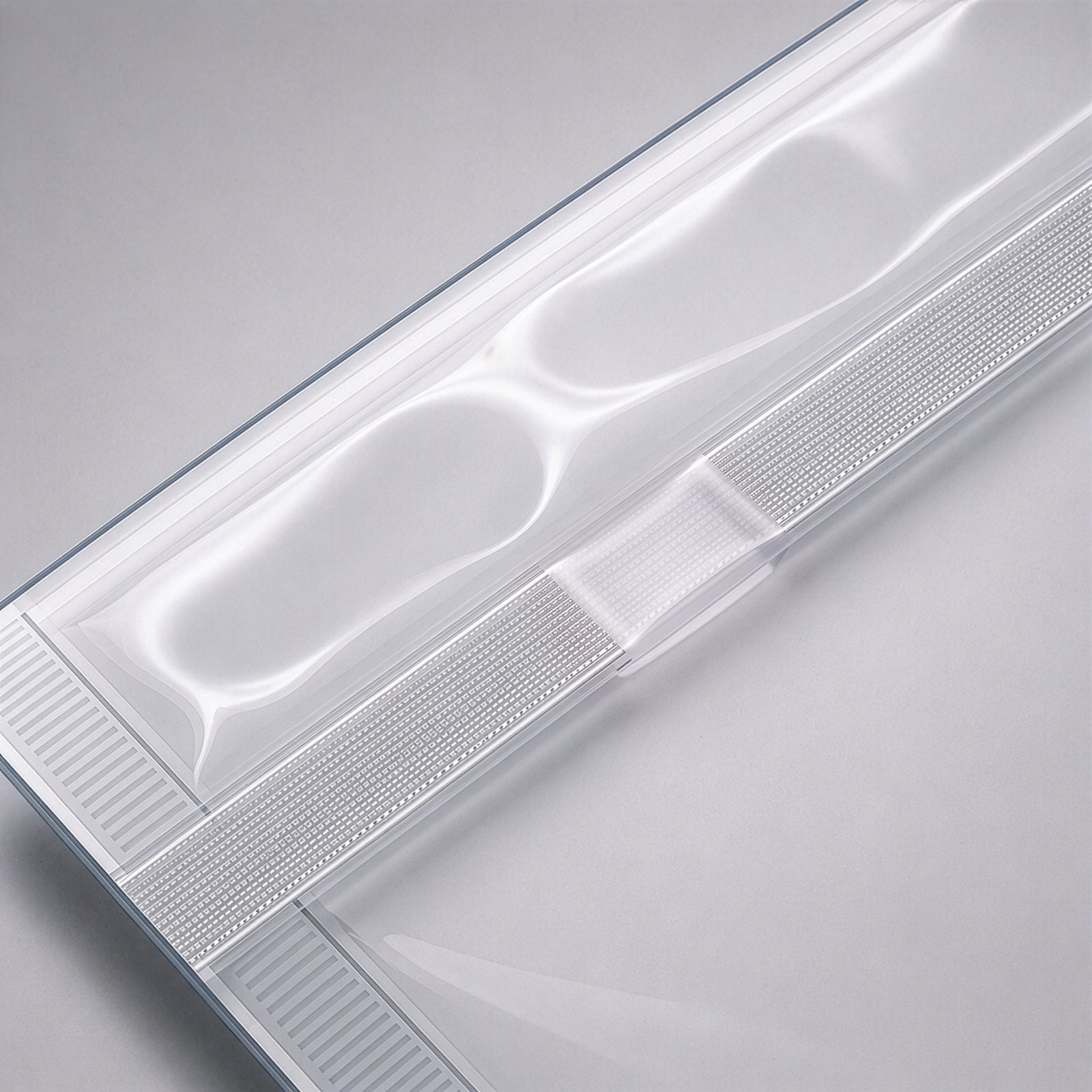

unsealed area

A localized portion of the intended pouch seal where the two packaging materials have not formed a complete, continuous bond. The affected area may appear lighter, clearer, or otherwise different from the surrounding properly sealed region.

Learn more

seal close to edge

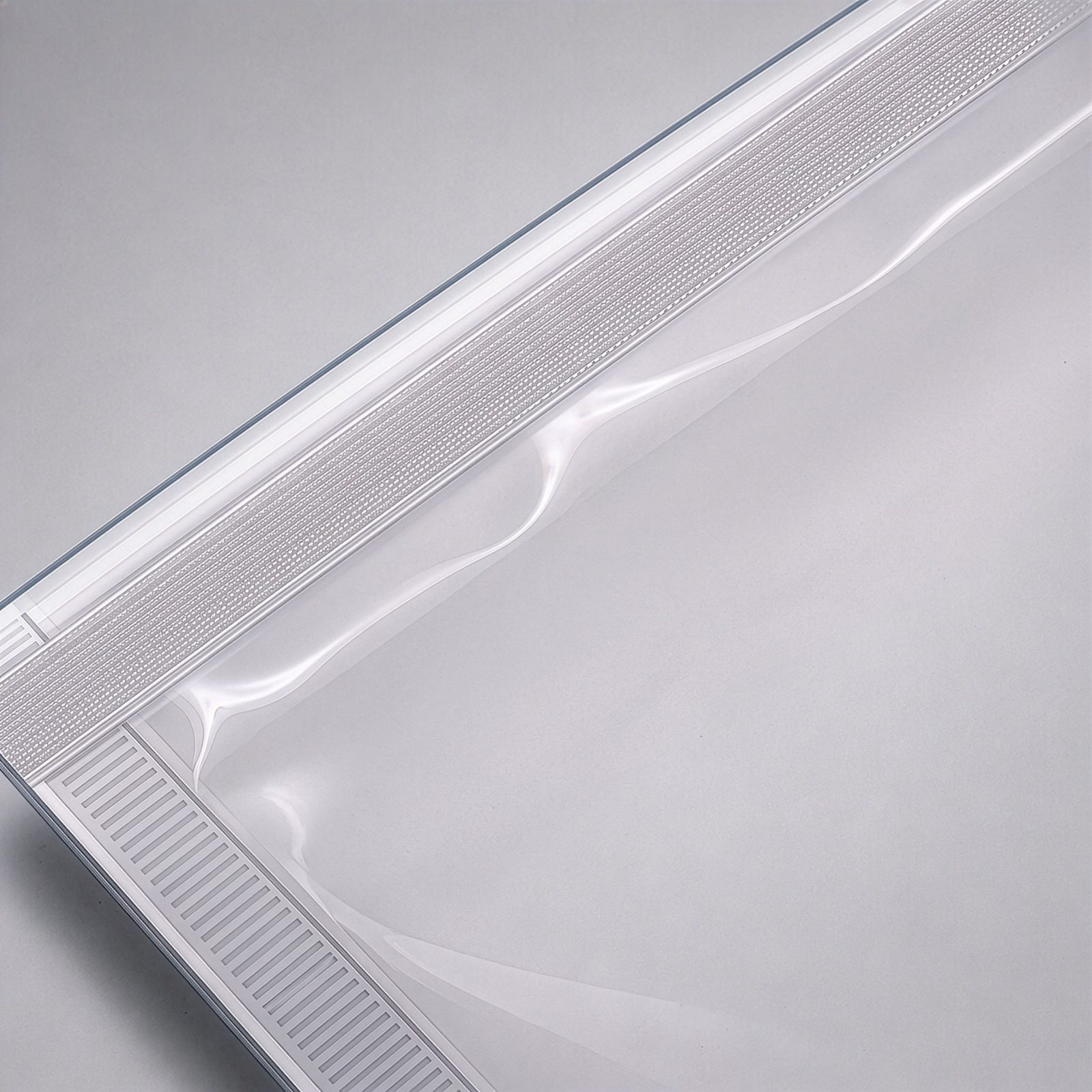

Is a visual condition seen as little remaining pouch material between the outer boundary of the seal and the cut edge of the package. This condition should be evaluated against the established pouch design and validated sealing process.

Learn more

over sealed

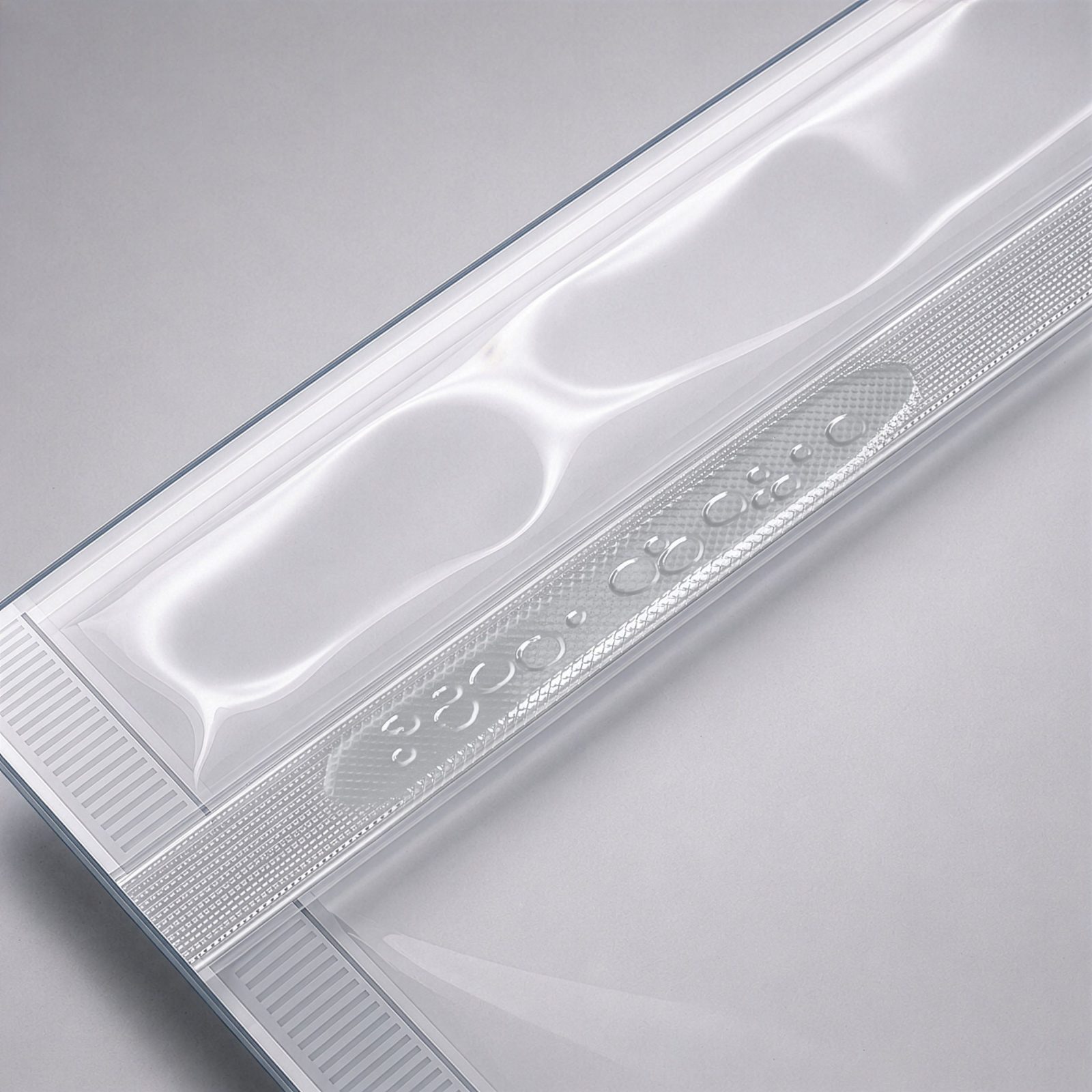

An over sealed pouch may show a rough, distorted, bubbled, or cloudy seal surface that differs from a validated seal. Watch for excess roughness, bubbling, cloudiness, unusual translucency, distortion, curling, or any seal that looks abnormal.

Learn more

narrow seal

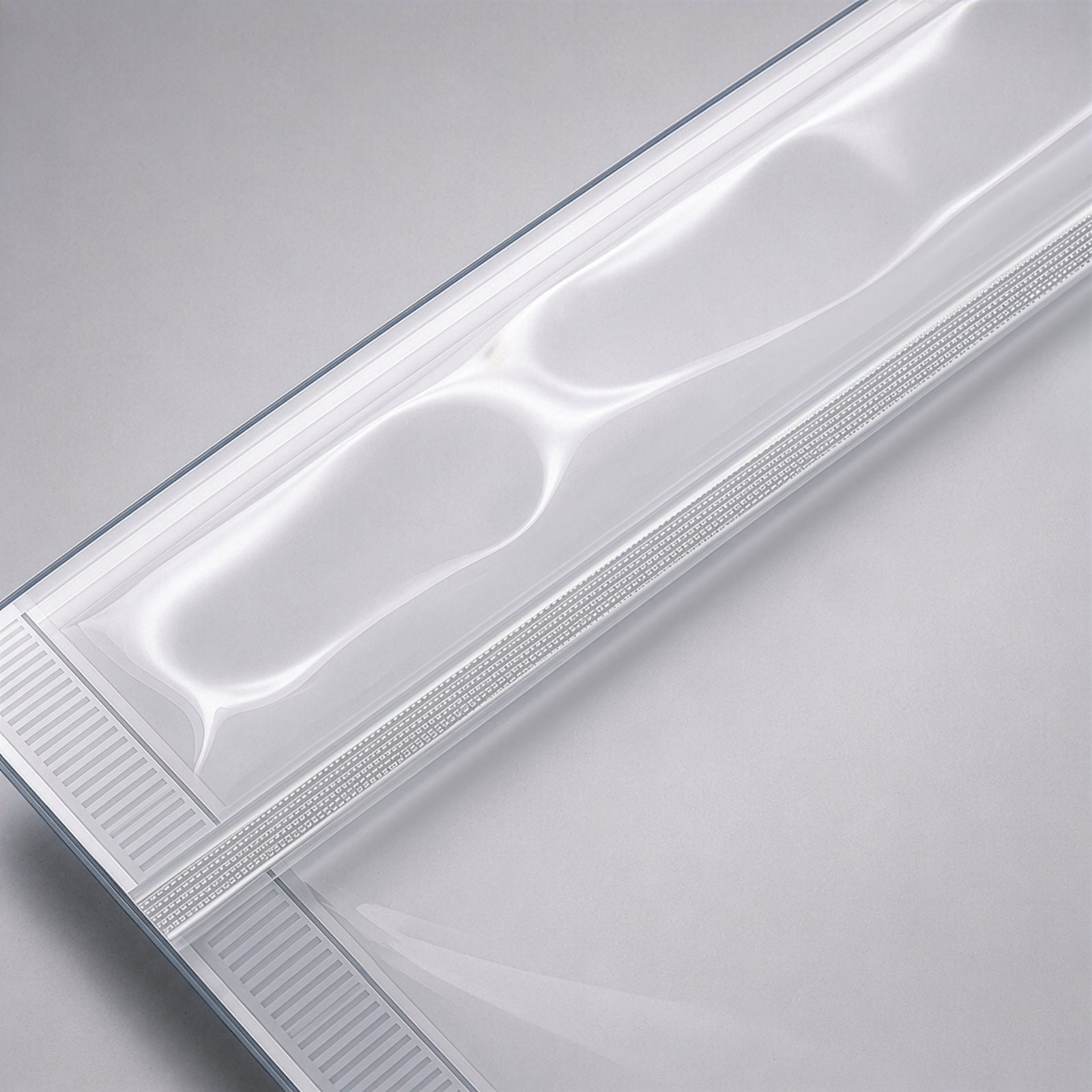

A narrow seal occurs when the bonded width is visibly less than the validated minimum. Inspect the full perimeter of the seal for reduced width, uneven boundaries, or abnormal seal patterns. A narrow seal alone doesn’t confirm an integrity breach.

Learn more

under sealed

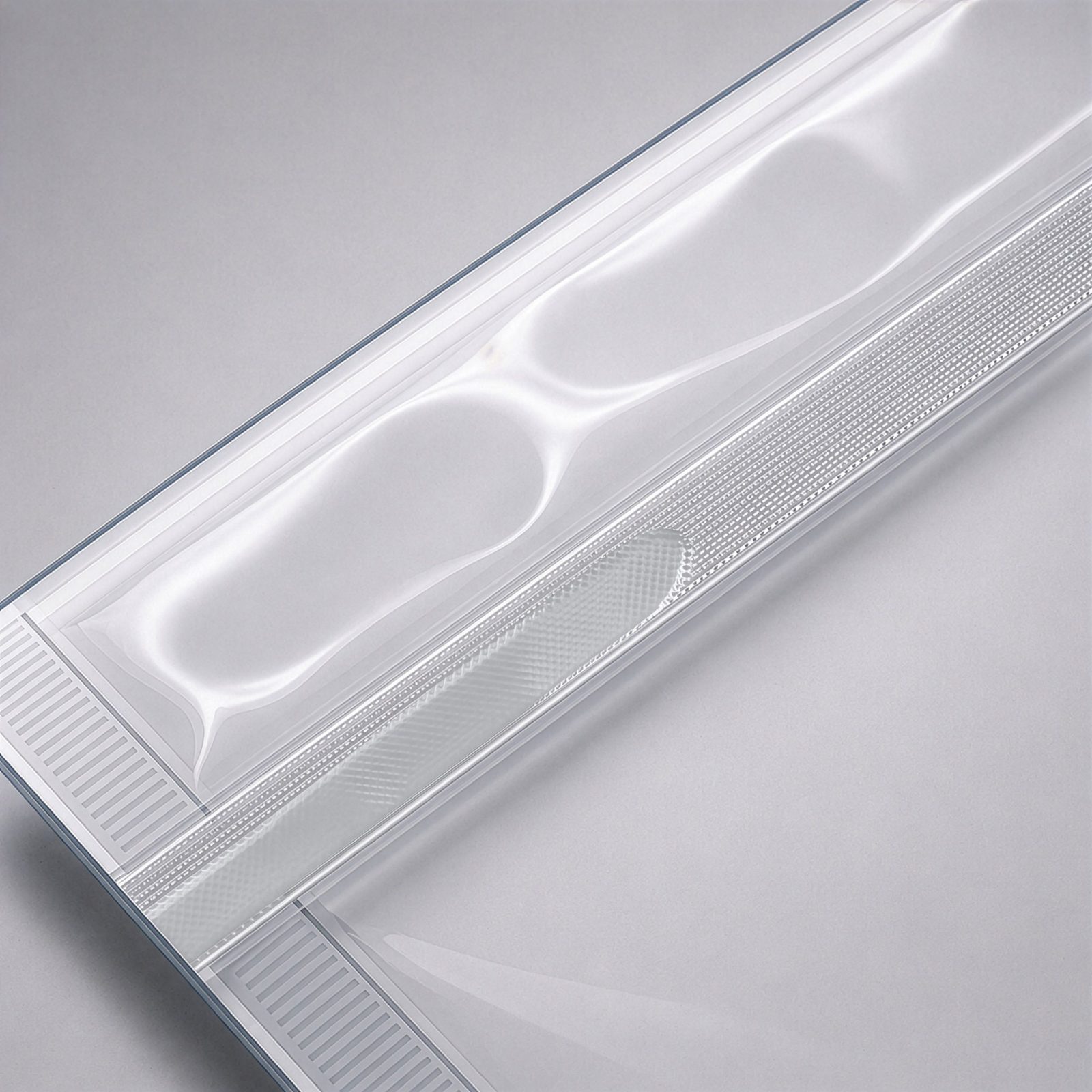

An under sealed pouch shows weak, incomplete, or uneven bonding. It may look lighter, mottled, or spotty and may peel with less resistance. Compare the full seal to a reference and watch for inconsistent pathways that suggest a process shift.

Learn more

fold-over or pleat

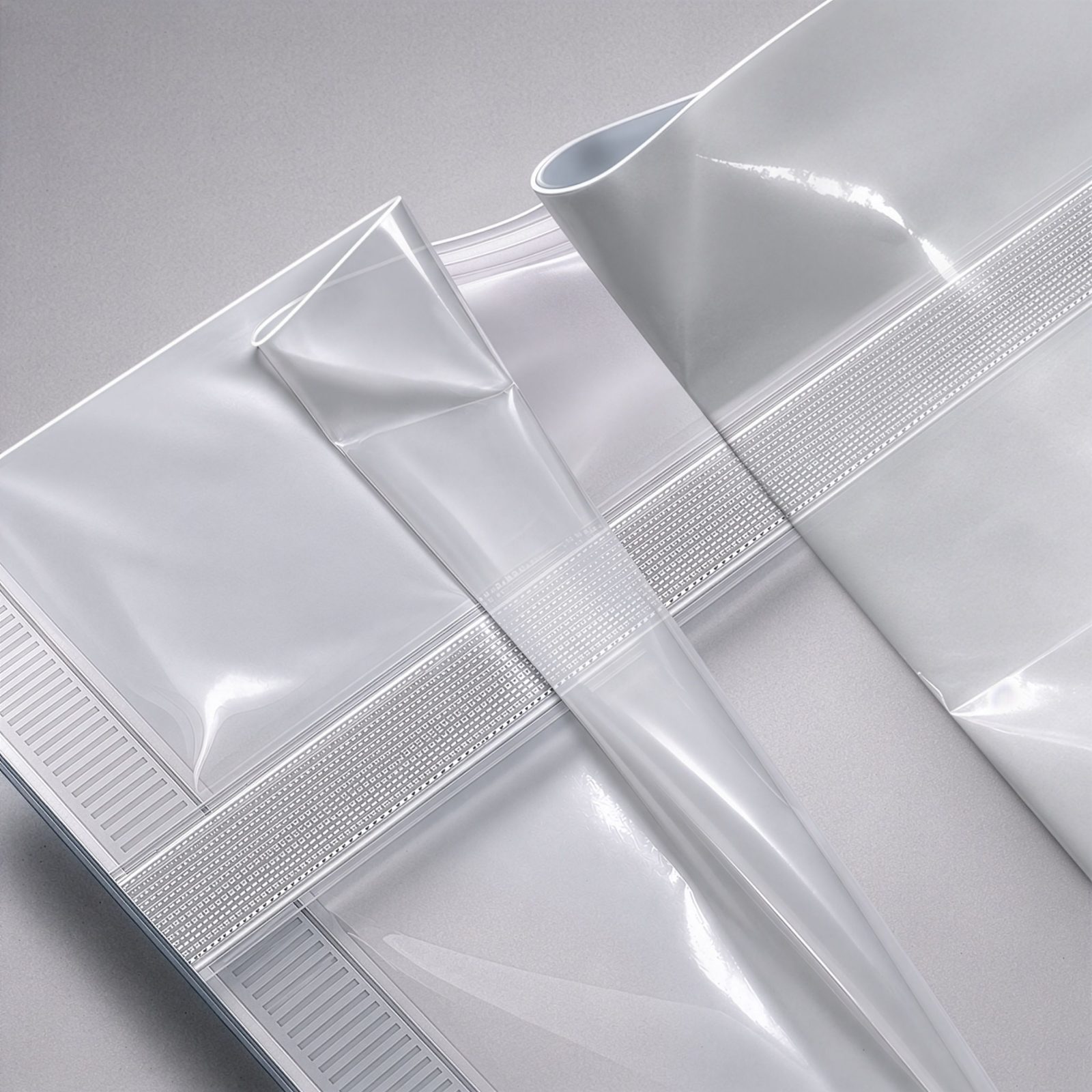

A fold over or pleat occurs when pouch material folds or gathers in the seal area, creating extra layers. It may appear as a diagonal fold, ridge, or overlap. The concern is whether it interrupts the seal and forms a channel across the width.

Learn more

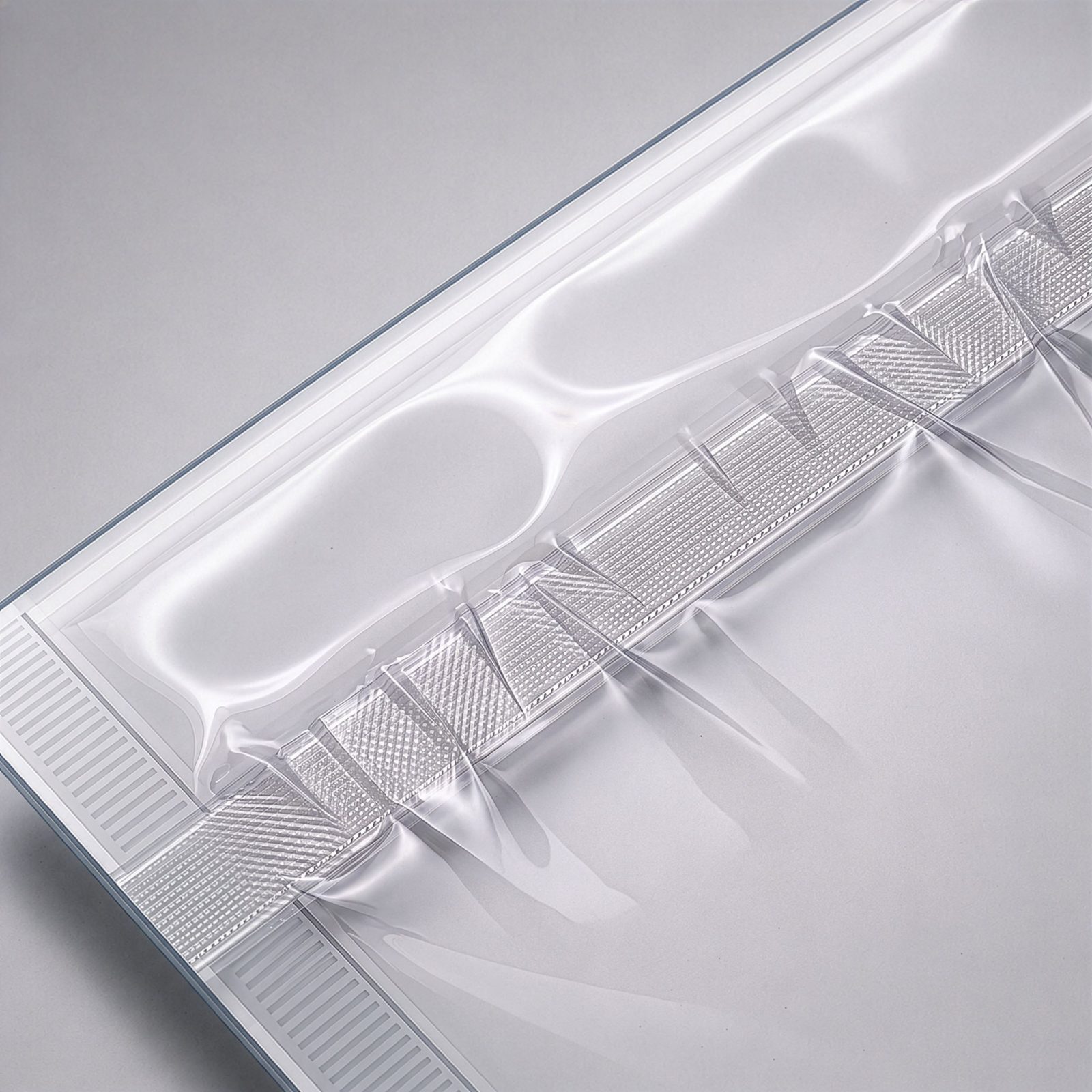

severe wrinkles

Severe wrinkles are deep creases or distortions that enter the seal area and disrupt uniform bonding. Look for wrinkles that cross the seal, create irregular boundaries, gaps, or channels, or noticeably distort the validated seal pattern.

Learn more

foreign material

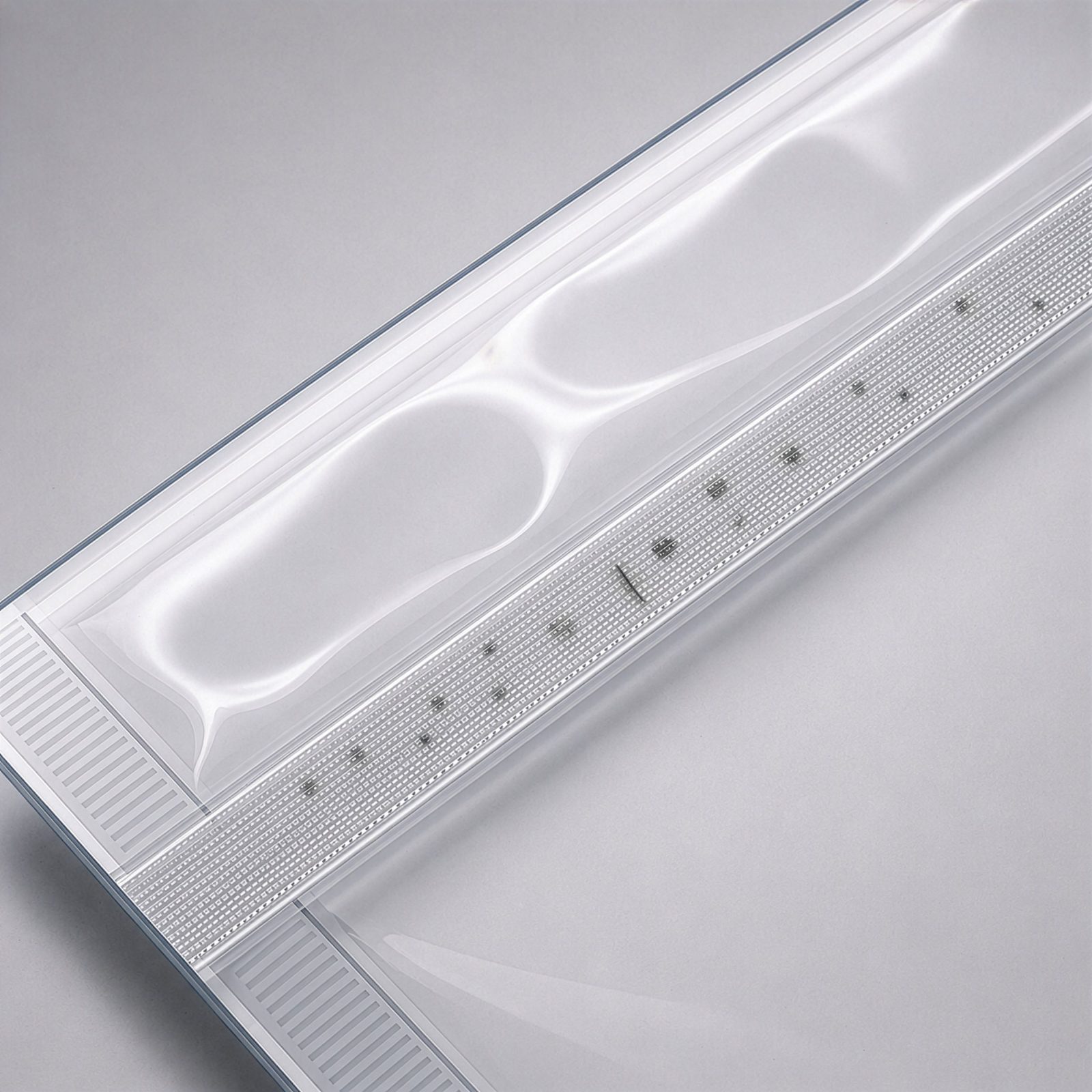

Foreign material appears as a speck, fiber, residue, or other visible debris trapped in the seal area. It may require proper lighting or magnification to see. The key concern is whether it disrupts bonding or creates a pathway through the seal.

Learn more

impression without bond

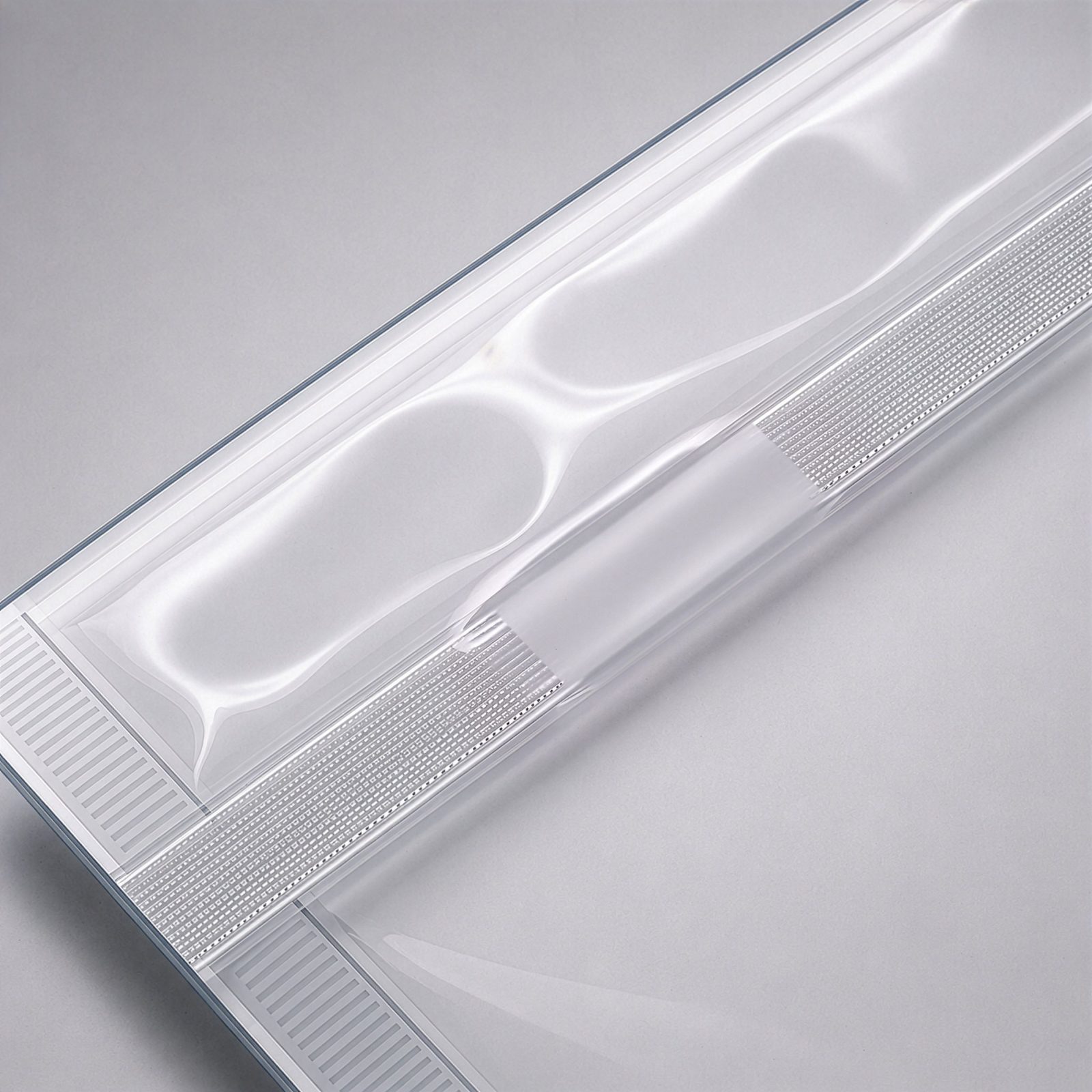

An impression without bond occurs when the sealer leaves a smooth, seal shaped mark but the materials never bonded. The seal shows an impression without the usual discoloration, and the expected bonding is absent or greatly reduced.

Learn more

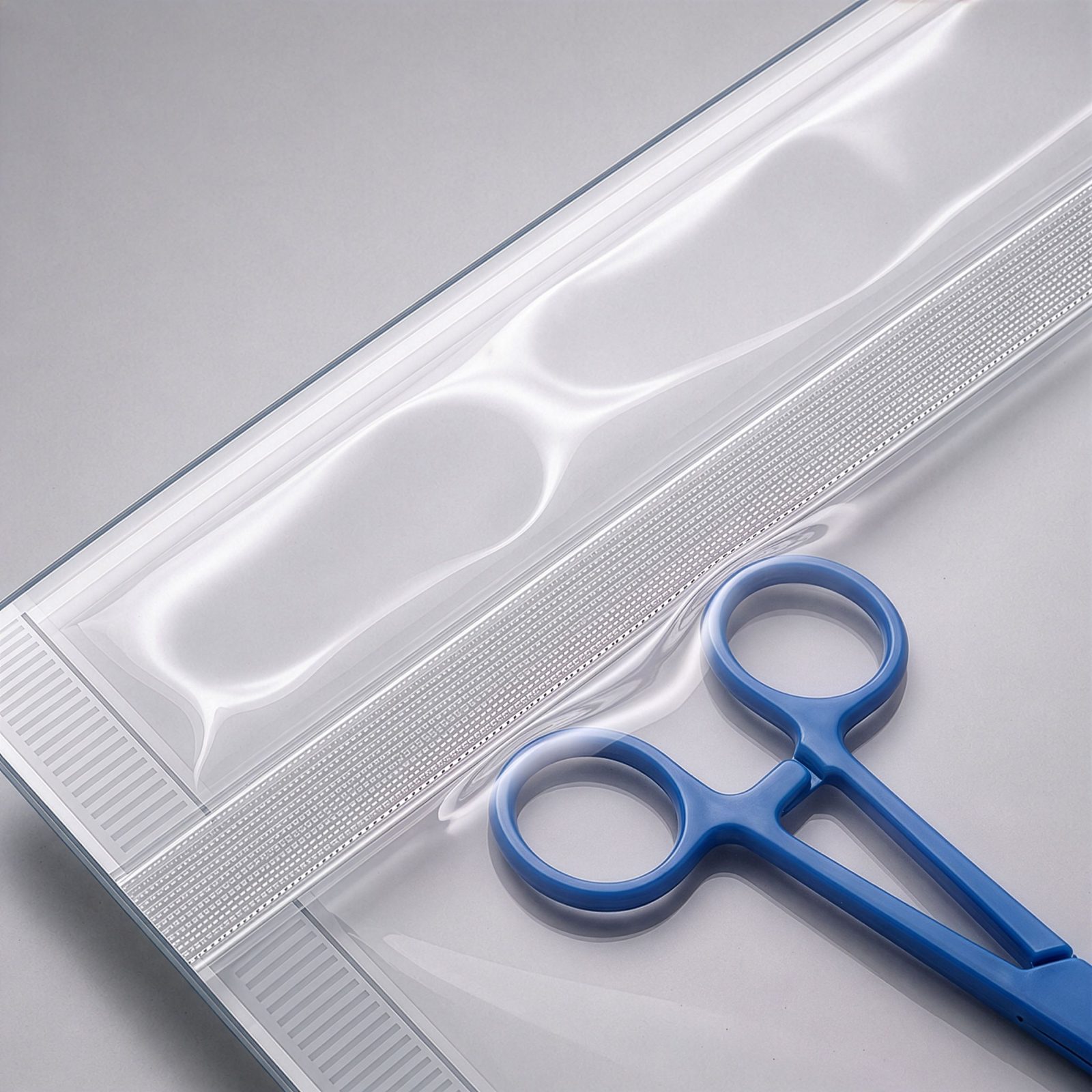

device too close to the seal

A device too close to the seal occurs when contents sit within or near the seal area. Look for reduced clearance, pressure marks, narrowing, wrinkles, or folds. Rigid or heavy items can stress the seal and cause deformation or damage.

Learn more
